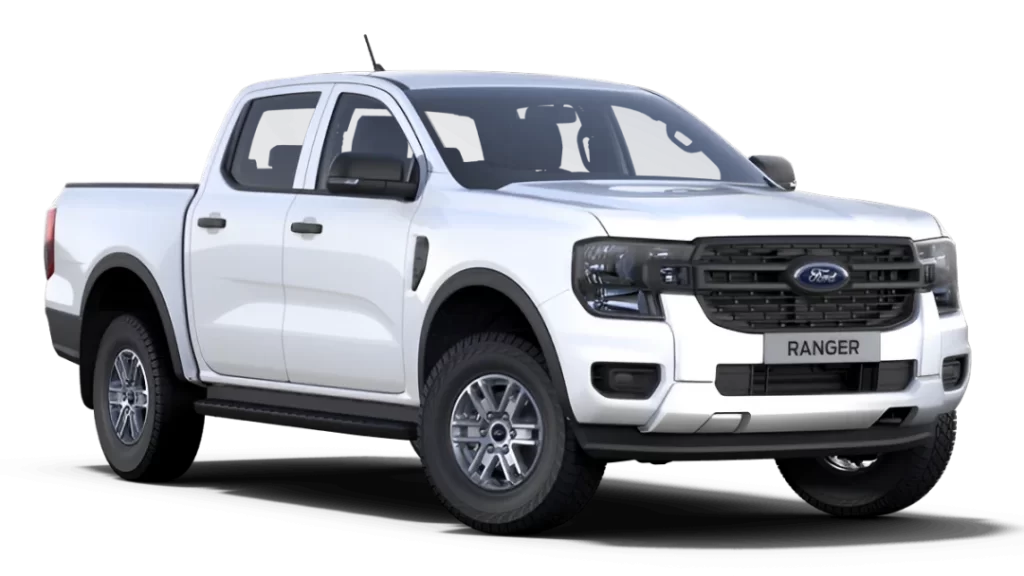

| Model | Ford Ranger XL |
| Jenis Kendaraan | Double Cabin Pickup |
| Mesin | 2.0L Turbo Diesel |
| Konfigurasi Mesin | 4-Silinder Inline (I4) |
| Kapasitas Silinder | 1.996 cc |
| Tenaga Maksimum | 170 PS / 125 kW @ 3.500 rpm |
| Torsi Maksimum | 405 Nm @ 1.750–2.500 rpm |
| Sistem Bahan Bakar | Commonrail Direct Injection |
| Transmisi | 6-Speed Manual |
| Sistem Penggerak | 4x4 |
| Electronic Shift on the Fly (ESOF) | Standard |
| Suspensi Depan | Double Wishbone with Coil Spring |
| Suspensi Belakang | Leaf Spring |
| Rem Depan | Ventilated Disc |
| Rem Belakang | Drum |
| Panjang | 5.370 mm |
| Lebar | 1.918 mm |
| Tinggi | 1.884 mm |
| Jarak Sumbu Roda | 3.270 mm |
| Ground Clearance | 230 mm |
| Panjang Bak | 1.564 mm |
| Lebar Bak | 1.584 mm |
| Kedalaman Bak | 540 mm |
| Berat Kosong | 2.277 kg |
| Berat Kotor | 3.230 kg |
| Kapasitas Tangki | 80 Liter |
| Velg & Ban | 255/70 R16 Alloy |
| Lampu Depan | Halogen + Manual Leveling |
| DRL | LED Daytime Running Lights |
| Head Unit | 10” Multi Touchscreen |
| Konektivitas | Wireless Apple CarPlay & Android Auto |
| Sistem Audio | 4 Speaker |
| SYNC | SYNC 4A |
| AC | Single Zone Manual |
| Material Jok | Cloth |
| Airbag | Driver, Passenger, Side & Curtain |
| Fitur Keselamatan | ABS, EBD, Immobilizer, ISOFIX |
| Remote Keyless Entry | Standard |
